Toner Classifier TSP,TTS
The TSP and TTSP ultrafine classifiers were developed especially for demanding classification tasks.
Principle of operation

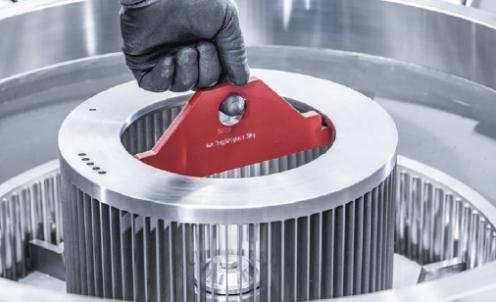

The feed material is dispersed by the classifying wheel and transported through the same by the classifying air. The dust entrained in the air is transported through the support wheel and discharged via the fines discharge. The coarse product is rejected by the classifying wheel and conveyed to the coarse material discharge. The product routing is designed such that no back-mixing can occur and a high quality of dust removal is ensured. The special configuration with the support wheel is patented; it permits optimum access for quick and thorough cleaning at minimum downtime.
Protected by additional patents, the TTSP classifier is a refinement of the TSP classifier, primarily with the aim of improving the precision of cut even further by means of two consecutive classifying stages. At the same product loading of the classifying air, the TTSP classifier achieves a much higher precision of cut than the TSP, or at a constant coarse product quality, achieves a higher loading factor. This makes it possible to almost treble the throughput in comparison with the TSP.
Features
High precision of cut
Steep particle size distribution and precise separation of small amounts of oversized grain
Low pressure loss and therefore a small-sized motor for the blower.
High loading (kg/m³) and therefore high outputs at small machine sizes.
Due to the high loading, the plan accessories can be dimensioned for low air flow rates accordingly
Low energy input. Thus it is possible to process products with a low fusion point.
Classifier conceived for easy disassembly and cleaning.
TTSP: Two-stage classification in the machine
TSP: One-stage classification
Specifications
| Specifications / Models | TSP 200 | TSP 250 | TSP 315 | TSP 400 | TSP 500 |
|---|---|---|---|---|---|
| Scale-up factor [f] | 0,4 | 0,6 | 1 | 1,6 | 2,5 |
| Motor power [kW] | 3 | 5,5 | 7,5 | 11 | 18,5 |
| Air flow rate[Nm³/h] | 500 | 900 | 1400 | 2300 | 3600 |
| Specifications / Models | TTSP 200 | TTSP 250 | TTSP 315 | TTSP 400 | TTSP 500 |
| Scale-up factor [f] | 0,4 | 0,6 | 1 | 1,6 | 2,5 |
| Motor power [kW] | 3 | 5,5 | 7,5 | 11 | 18,5 |
| Air flow rate [Nm³/h] | 1120 | 1800 | 2800 | 4600 | 7200 |
