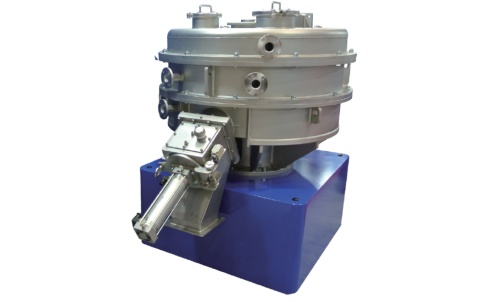

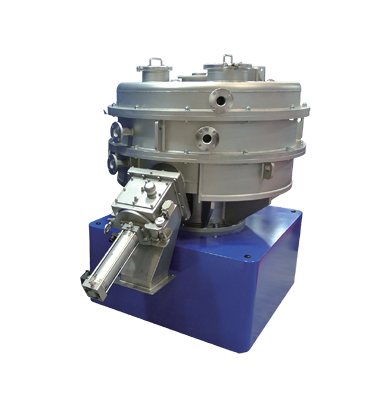

Nobilta NOB
The Nobilta is a high-performance powder processing machine used for particle design. It is capable of a wide range of fast mixing from macro mixing to micro mixing, particle composing, surface treatment and spheronization.

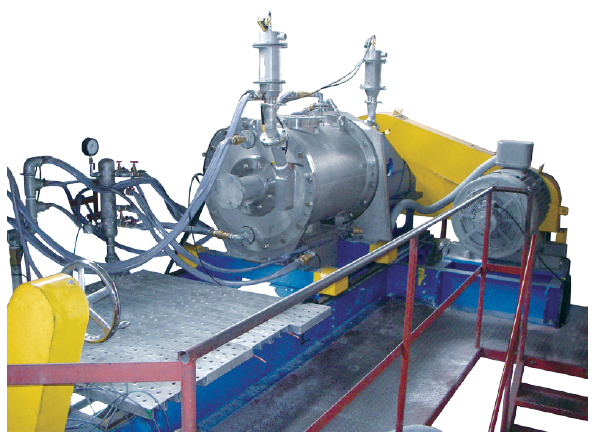

Nobilta Vercom (NOB-VC)
Nobilta Vercom (NOB-VC) is the dry particle composing machine that realizes large process capacity while maintaining the superior composing ability of conventional Nobilta (NOB).
It can realize the large process capacity and compacting while maintaining the ability of NOB, by optimizing the structure.Moreover, cleanability is significantly improved.

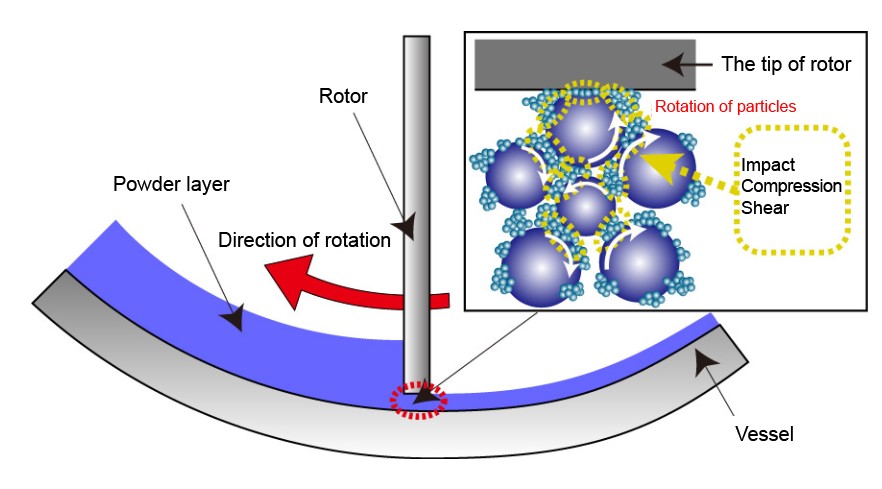

Principle of Operation
It is so designed that impact, compression and shear force work on each particle with the uniquely configured rotor.
This configuration of rotor as well as internal arrangement is the know-how of the uniform composing. By the adjustment of the rotation speed and operational time particle processing (composing and precise mixing) is carried out.
The cooling jacket is provided on the vessel for prevention of the sticking and degradation of product quality.
Optional parts are available for processing of abrasive materials.
Features
One machine can be used for mixing, composing, surface treatment, and spheronization
Nobilta can be used for particle design of Nano sized particles.
Nobilta can be used to mix a wide range of particle sizes from Nano level to micron sizes.
Compact, low running cost
Easy to disassemble, clean, and reassemble
Nobilta can process heat sensitive, abrasive, sticky, hard to handle materials
Specifications
| Item | Motor (kW) | Rotor speed (rpm) | Capacity (L) | Dimensions Total width : W (mm) | Total length : L (mm) | Total height : H (mm) | Approx. mass (kg) |
|---|---|---|---|---|---|---|---|
| NOB-MINI | 0.75 | 9000 | 0.02 | 300 | 400 | 350 | 40 |
| NOB-130 | 5.5 | 6000 | 0.5 | 600 | 1010 | 550 | 230 |
| NOB-300 | 30 | 2600 | 10 | 800 | 2270 | 1260 | 1000 |
| NOB-450 | 55 | 1700 | 30 | 1700 | 2400 | 1600 | 3000 |
| NOB-700 | 110 | 1100 | 100 | 2000 | 2500 | 1700 | 5000 |
| NOB-1000 | 200 | 780 | 300 | 2800 | 3500 | 2300 | 10000 |

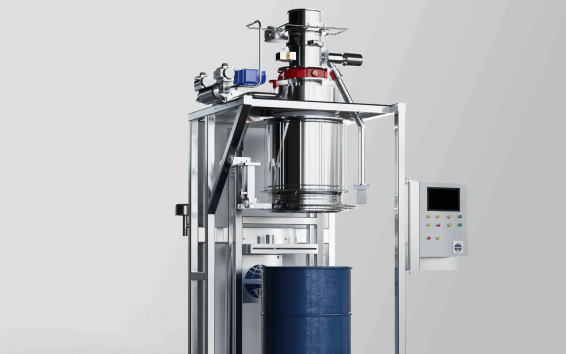

experimental verification
Before investing in new equipment, please conduct tests on the materials to be used at the Hosokawa Testing and Process Development Center based on actual production conditions. Our experienced experts will assist you in determining the most effective mixing, granulation, or drying processes, helping you transition from laboratory testing to a comprehensive production testing phase. Whether you need to test the performance of a single machine or evaluate the entire production line, we can provide tailored testing services and process optimization solutions to ensure reliable system operation and excellent performance.
