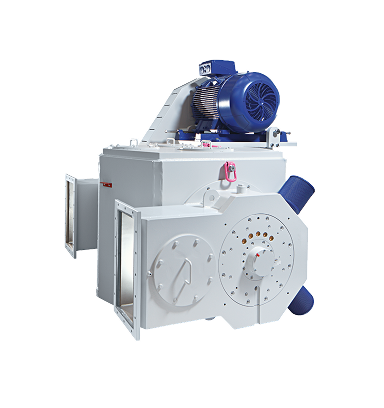

Turbo Twin Double TTD
The ultrafine classifier TTD is second to none when it comes to classifying soft to medium-hard minerals at high throughputs, for example in the production of fillers.

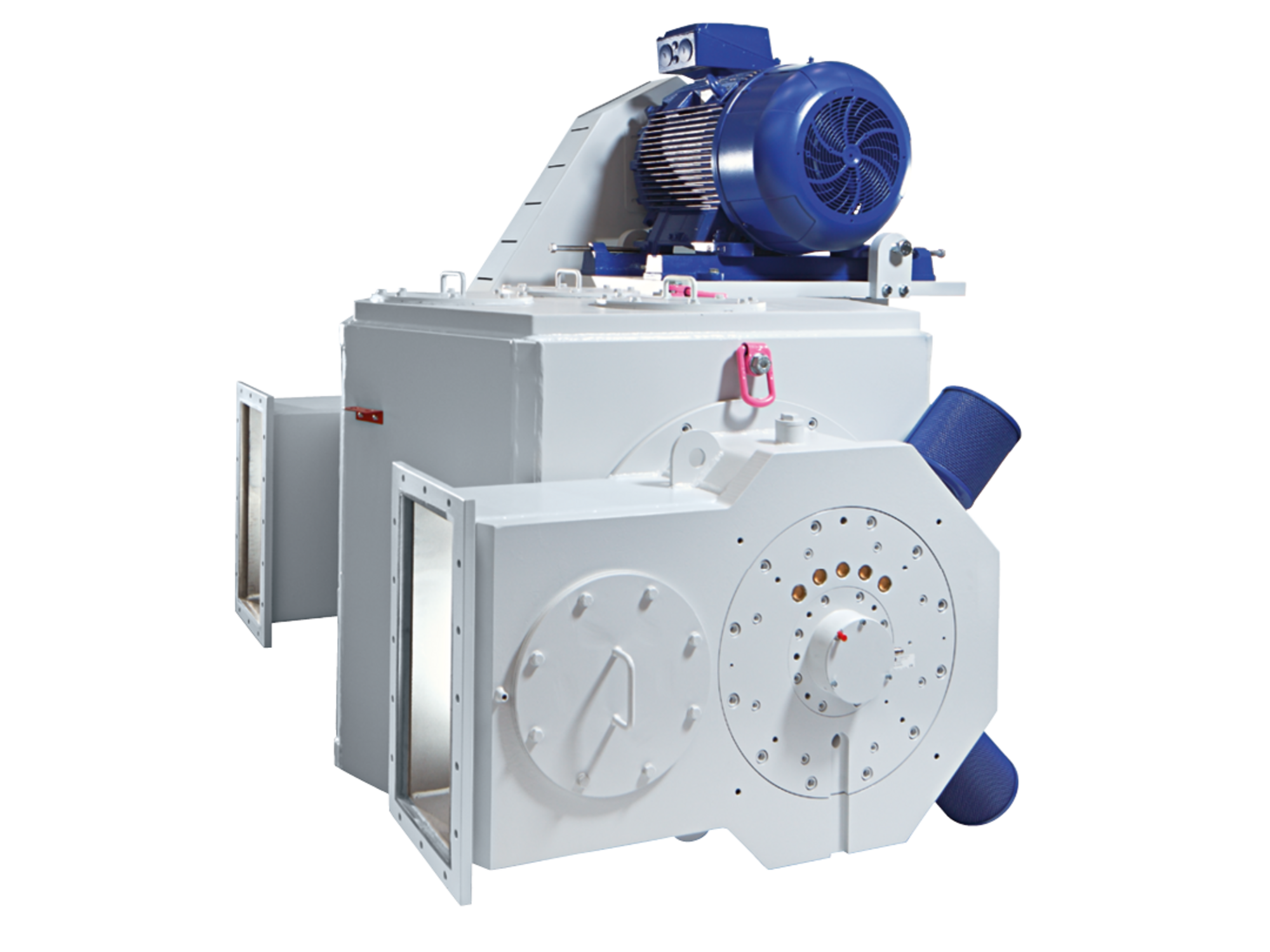

Principle of Operation
The classifying wheel is supported in bearings on both sides and permits extremely high peripheral speeds of up to 120 m/s. Another unique feature is the optimised product routing direct to the classifying wheel. This prevents any backmixing with the already classified coarse material. It is no longer necessary to adjust the classifying wheel gap, which simplifies maintenance tremendously. There are currently six machine sizes available: 200, 315, 500, 630, 800 and 1,000.
Features
High fines yield and maximum fines capacity, with a single classifier wheel
Superfine powders in the range of d97 = 3 µm to d97 = 45 µm
Classifying wheel supported in bearings on both sides
Double flooded fine material outlet
Optimized feed material supply direct to the classifier wheel
Compact and functional design
Specifications
| Model | Fines capacity at x₅₀, 5 μm (kg/h) | Fines capacity at x₅₀, 10 μm (kg/h) | Fines capacity at x₅₀, 20 μm (kg/h) | Nominal air flow rate Classifier (m³/h) |
|---|---|---|---|---|
| 200 | 110 | 290 | 460 | 1900 |
| 315 | 290 | 710 | 1100 | 4800 |
| 500 | 710 | 1800 | 2800 | 12000 |
| 630 | 1100 | 2900 | 4600 | 19000 |
| 800 | 1800 | 4500 | 7200 | 30000 |
| 1000 | 2900 | 7200 | 11500 | 48000 |
experimental verification
Before investing in new equipment, please conduct tests on the materials to be used at the Hosokawa Testing and Process Development Center based on actual production conditions. Our experienced experts will assist you in determining the most effective mixing, granulation, or drying processes, helping you transition from laboratory trials to a comprehensive production testing phase. Whether you need to test the performance of a single machine or evaluate the entire production line, we can provide tailored testing services and process optimization solutions to ensure reliable system operation and excellent performance.
