Parshe Analyzer
The Hosokawa Micron Parshe Analyzer is a Flow Particle Image Analyzer designed to measure particle size and shape of particles by means of analyzing images.
Principle of Operation
The "Combination Optical / Flow Control / Electrical / Image Analysis Technology"
The system supplies particles consistently to Sheath-Flow cell. They are focused by a camera since the sample is directed to a certain focal position by “sandwiching” the flow of Sheath liquid. The Sheath-Flow cell is placed between a Xenon lamp and a camera. The camera takes particle images illuminated by a Xenon lamp to make shadow pictures; it produces sharp particle outlines that are precisely captured.
The automatic focus-adjustment system corrects the fine deviation which would affect the measurement values so clear particle images are acquired.The "Combination Optical / Flow Control / Electrical / Image Analysis Technology"
The system supplies particles consistently to Sheath-Flow cell. They are focused by a camera since the sample is directed to a certain focal position by “sandwiching” the flow of Sheath liquid. The Sheath-Flow cell is placed between a Xenon lamp and a camera. The camera takes particle images illuminated by a Xenon lamp to make shadow pictures; it produces sharp particle outlines that are precisely captured.
The automatic focus-adjustment system corrects the fine deviation which would affect the measurement values so clear particle images are acquired.
Features
The Parshe Analyzer is "One of the best Flow Particle Image Analyzers for fine particles"
The Parshe Analyzer is able to analyze many fine particle images ranging from nano to hundreds of microns correctly.
The "Advanced Flow Controlling System"
Leading the particles to the focal position.
Fast Analysis
Capturing wide shooting range.
Ability to take approximately 500,000 particle images of 1micron particles per 1 minute at maximum.
Analysis time is 1/10 of the time compared to that of common flow particle image analyzers.
Automatic Internal-Lens-Selection System
Selecting Internal Lens automatically depending on the particle size is performed by the software. (Two (2) lens sizes: A) Standard Mode for particles about 5micron. B) High-Magnification Mode for particles 1micron or smaller)
Prevention of Human Error
Automatic Focus-Adjustment System corrects the fine deviation in the Sheath-Flow cell to get the sharpest and most accurate particle images.
Pretreatment is greatly important to get repeatable results.
OPTIONAL Auto Sampler (PAS-AS) disperses the particles prior to starting a measurement and acts as a pretreatment condition when measuring several samples.
Eliminates analysis measurement value differences between operators
Automatic Cleaning System
Minimizing cleaning process.
Eliminates operator for cleaning.

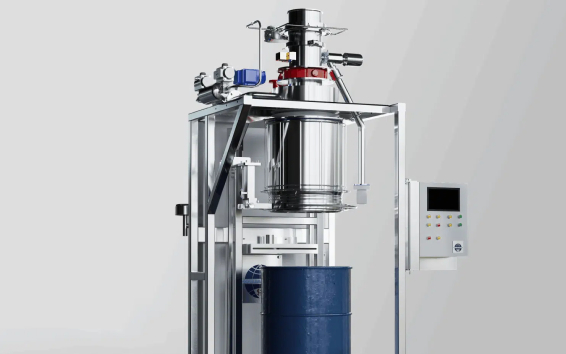

experimental verification
Before investing in new equipment, please conduct tests on the materials to be used at the Hosokawa Testing and Process Development Center based on actual production conditions. Our experienced experts will assist you in determining the most effective mixing, granulation, or drying processes, helping you transition from laboratory testing to a comprehensive production testing phase. Whether you need to test the performance of a single machine or evaluate the entire production line, we can provide tailored testing services and process optimization solutions to ensure reliable system operation and excellent performance.
