Flexomix FX,FXD
The Flexomix is a compact, continuous high-shear mixer/agglomerator for mixing powders with liquids to form uniform, porous granules.
Principle of Operation
The Flexomix agglomeration system is a powerful combination of two proven Hosokawa technologies: the Flexomix continuous mixer / agglomerator and the Schugi fluid bed dryer and cooler. This combined design provides optimal process control and makes it the ultimate powder processing solution.
With this system, porous agglomerates can be made in a range of from 100 to 1,500 microns with a typical D50 value between 200 and 700 microns. This technology is also often referred to as Instant Agglomeration, since the Flexomix is extensively used for the production of instantly soluble agglomerates for food, chemical and pharmaceutical applications.
Base powders can be fed as a mixture or as multiple powders in parallel. An accurate, gravimetrical powder feeding subsystem ensures a constant powder/liquid ratio and a liquid dosing skid ensures accurate flow control and a constant powder/liquid ratio in the agglomerator. The liquid skid can be equipped with a stirrer or a heated tank for example, or in the case of solution binders, a preparation tank.
Features
Continuous, high-throughput operation (100–40,000 kg/h)
Dust-reduced, free-flowing agglomerates; improved wetting, solubility and dispersibility
Controlled PSD, porosity and bulk density
Self-cleaning design
Low manpower requirements
Maintenance-friendly
Robust, scalable solution from pilot to full production
Energy-efficient: typically ~35% less energy than a spray tower
Specifications
| Model | Length | Width | Height incl. motor | Capacity (bulk density 0.5 kg/l) | Typical motor power |
|---|---|---|---|---|---|
| FXD-100 | 520 | 650 | 1,265 | 100 – 400 | 3 |
| FXD-160 | 702 | 620 | 1,500 | 250 – 1,000 | 7.5 |
| FXD-220 | 976 | 880 | 1,967 | 800 – 2,500 | 7.5 – 10 |
| FXD-250 | 976 | 880 | 1,967 | 2,000 – 4,000 | 11 – 15 |
| FXD-335 | 1,270 | 1,100 | 2,270 | 3,000 – 10,000 | 22 – 45 |
| FXD-400 | 1,270 | 1,100 | 2,910 | 8,000 – 40,000 | 37 – 75 |

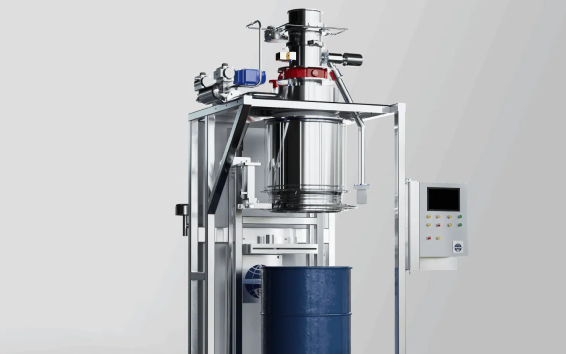

experimental verification
Before investing in new equipment, please conduct tests on the materials to be used at the Hosokawa Testing and Process Development Center based on actual production conditions. Our experienced experts will assist you in determining the most effective mixing, granulation, or drying processes, helping you transition from laboratory testing to a comprehensive production testing phase. Whether you need to test the performance of a single machine or evaluate the entire production line, we can provide tailored testing services and process optimization solutions to ensure reliable system operation and excellent performance.
