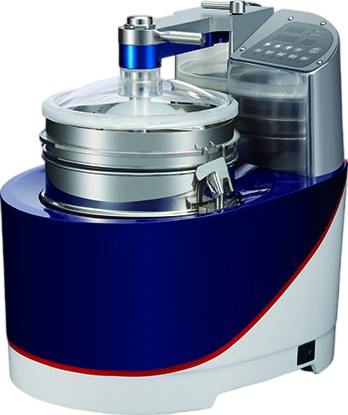

Viblette VBL
A revolutionary innovation in conventional measurement methods!

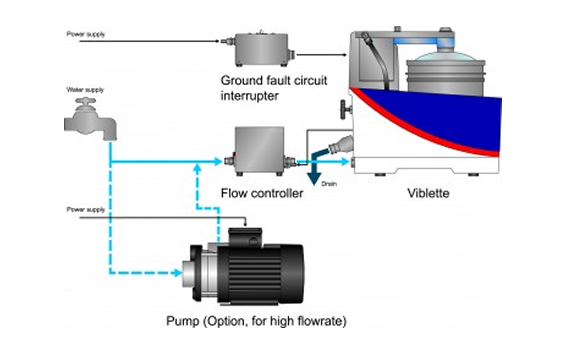

Principle of operation
Water is sprayed through a rotating sprinkler nozzle to disperse the sample. The Viblette is equipped with a vibration mechanism to assist in dispersing sample agglomerates and breaking potential liquid membranes on the sieve in order to achieve stable sieving.
Features
Current Wet Sieving
Excessive time required
Messy process
Liquid splashing
Inaccurate measurement results
Process skill required
Advantages of the Viblette
Reliable measurement results
Reduced analysis time
Repeatable measurement protocol
Achieve accurate measurement results within a short time.
Ultrasonic type
For wet sieving of strongly cohesive powders, the Ultrasonic + mechanical vibration model (VBL-FU) is a suitable instrument.
Sieving silica particles with the Viblette
The sieving of silica particles shown below was performed using a 5μm screen with the Viblette VBL-F-Ultra.
Specifications
| Parameter | Specifications |
|---|---|
| Model | VBL |
| Dimensions W×D×H | 304mm × 410mm × 399mm |
| Approx. mass (including options) | 46kg (51kg) |
| Sieve drum diameter | 200mm or 75mm (option) |
| Minimum aperture | 5μm |
| Power supply | 100 ~ 240V (50/60Hz) |
| Max. liquid required: Φ200mm sieve | 5 L/min |
| Max. liquid required: Φ75mm sieve | 4 L/min |
